弯管机1

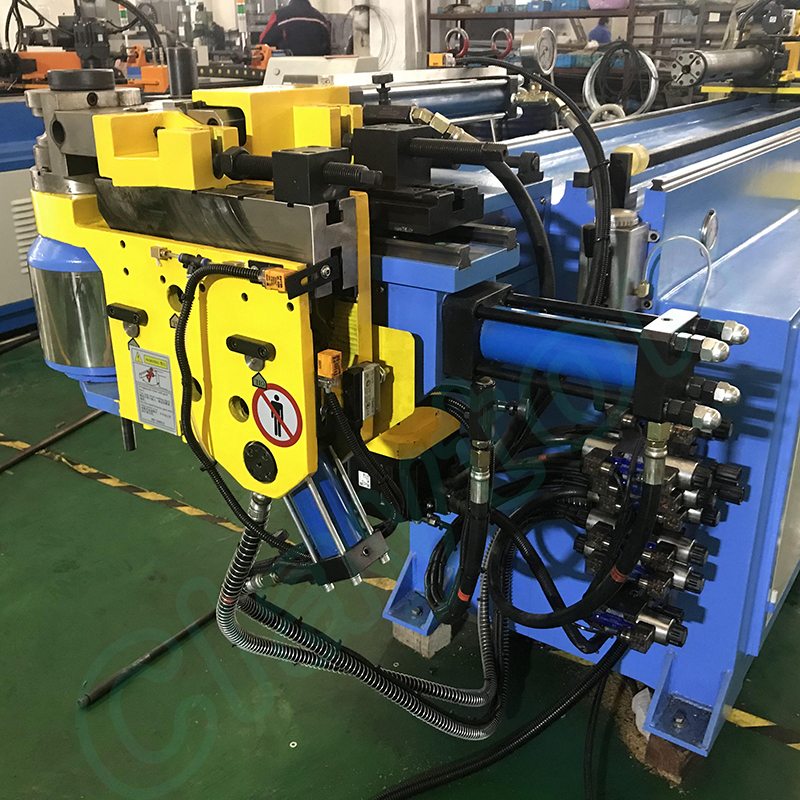

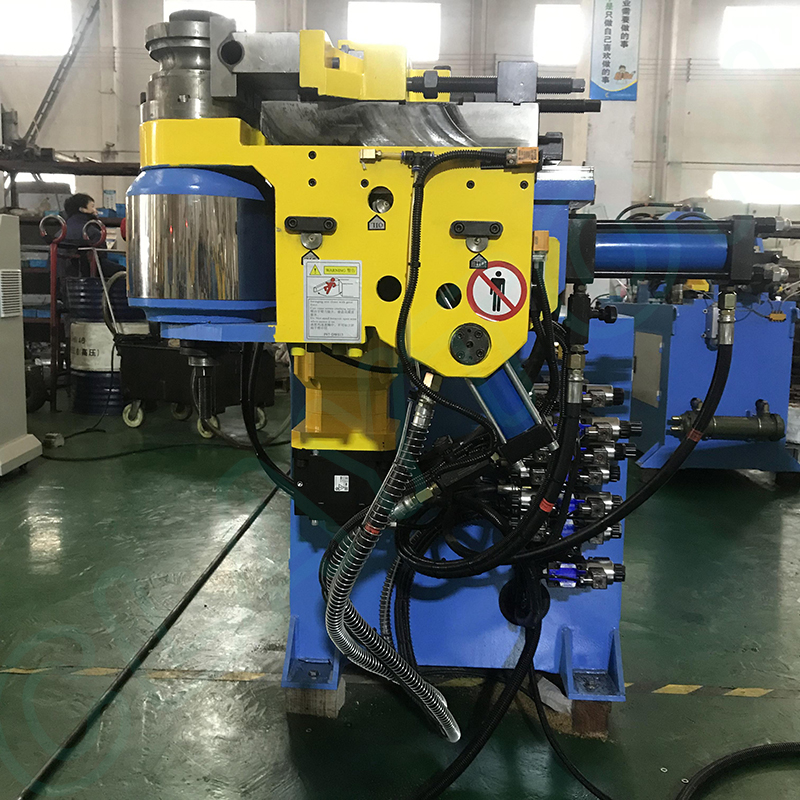

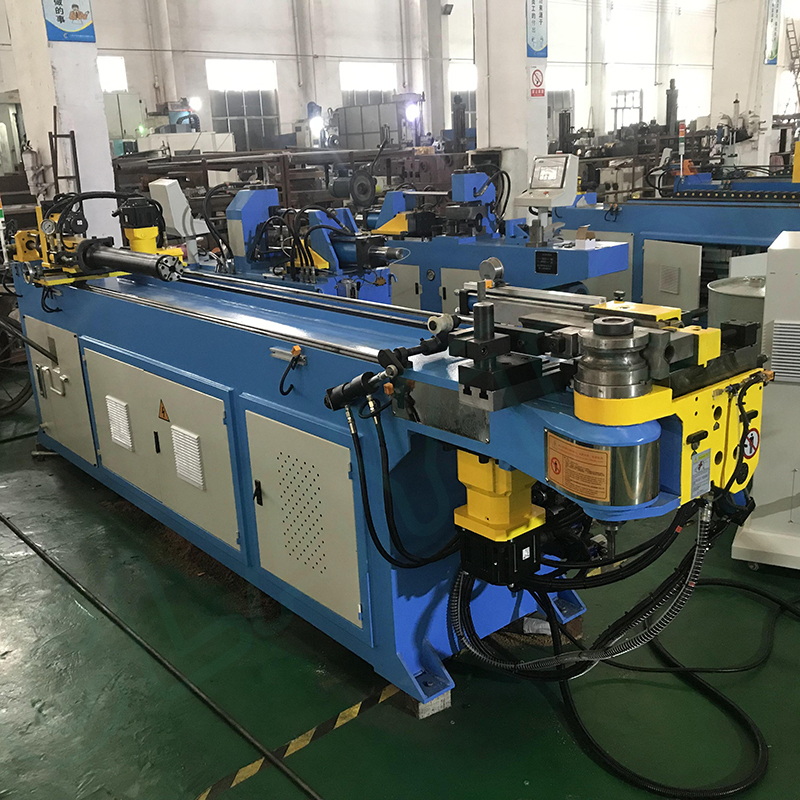

弯管机数控DW38CNC3A1S

类别:
立即发送查询

Notices: ​1. please purchase goods before contact me, we can CIF or FOB delivery trading way.,we provide wholesale services, please before decided to buy goods, be sure to contact me. ​

2. We also have other larger capacity cnc bending and cutting machines, please contact us if you need them.

DW38CNC3A1S ​No. Name Unite Parameter ​1 Max bending capability mm Φ38×2 ​2 Max bending radius mm R250 ​3 Min bending radius mm According to diameter ​4 Max bending degree Degree 190 ​5 Max effective distance of mandrel mm 3200 ​6 Bending Speed °/sec 160 ​7 Bending Servomotor Power Kw 3 ​8 Feeding Servomotor Power Kw 1 ​8 Turning Servomotor Power Kw 0.4 ​9 Control system CNC Control ​10 Max elbow bend pipe 16 ​11 Max storable sections 16×16 ​12 Motor power Kw 4 ​13 Max hydraulic pressure Mpa 12 ​14 Hydraulic system control Electromagnetic valve ​15 Measurement Mm 4200×920×1350 ​16 Weight of machine KG 2100
