Marca: CLD
Modelo: TM40-1
Certificado de autenticación: IOS9001
País de origen: China
Categorías: Pipe end forming machine

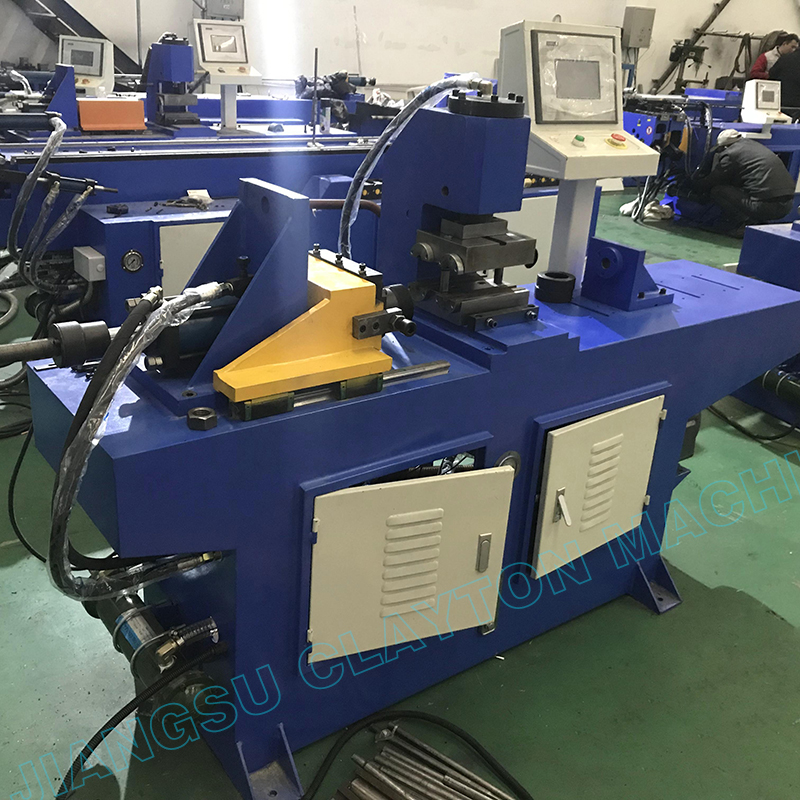

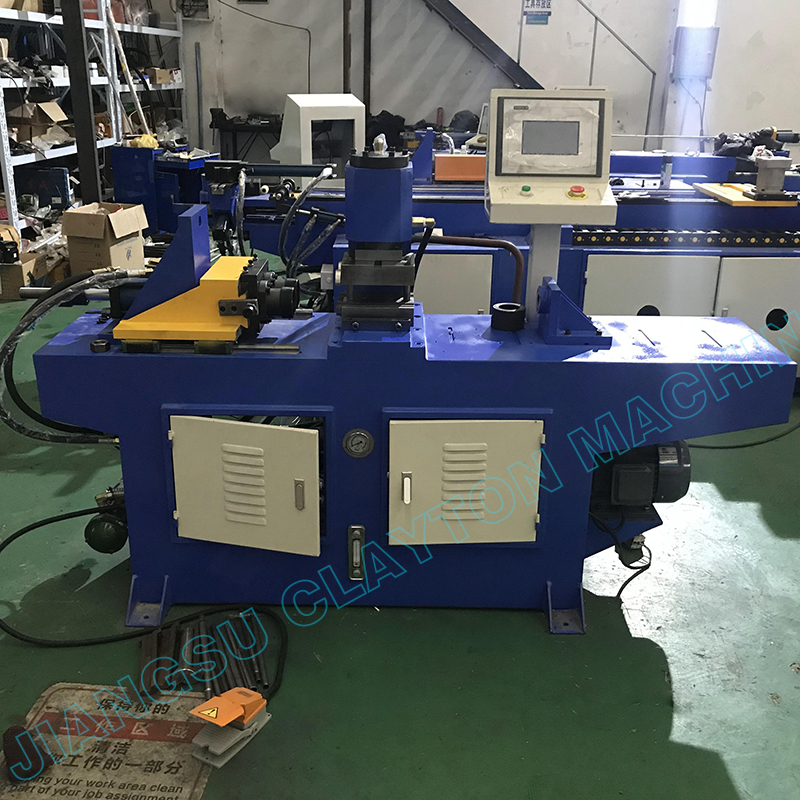

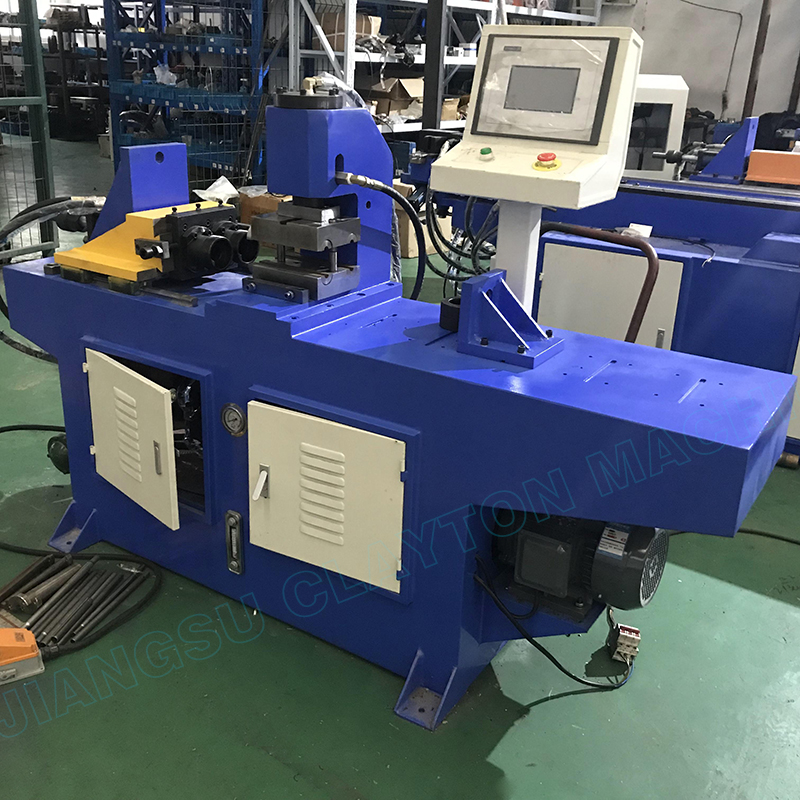

Model: TM40-1TM-40 Single head pipe end forming machine for pipe reducing and expandingApplication: Tube end forming machine is widely used in numerous end forming applications and industries, such as automotive exhausts, furniture, air conditioning, among others. Forming controlled by hydraulic, clamping controlled by hydraulic. Microcomputer controller with English or any other languageMain specification
1 NC Control Unit: Easy Operation and Maintenance
2 Suitable for the shrinking of various metal pipes with different material and different shape
3 Equipped with emergency stop device. Both manual and automatic operations are available
4 Shrinking stroke 100mm. The max. workpiece length is 450mm, with no minimum workpiece length
5 This machine can make pipe end reducer, expander, flange and flare depend on different forming molds
| Tipo | SG-40 | SG-60 | SG-80 | SG-100 |
| Max tube(mm) | φ40*2.0 | φ60*2.0 | φ80*3.0 | φ100*3.5 |
| Max processing length(mm) | 110 | 130 | 150 | 180 |
| Oil pressure(Mpa) | 14 | 14 | 14 | 14 |
| Working speed | 100mm in3-4/s | 100mm in3-4/s | 100mm in3-4/s | 100mm in3-4/s |
| Tamaño (cm) | 180*45*120 | 200*50*130 | 290*70*140 | 300*75*150 |
| Peso (kg) | 600 | 950 | 1600 | 1800 |
| Observación | 1.The max processing length can according to customers requirement. | |||
Cantidad mínima de pedido: 1 pieza
Precio: 2700USD
método de pago: 30% pago anticipado, 70% pago antes del envío
Disponibilidad: 2 piezas/por día
Tiempo de entrega: (7 días para enviar)
Embalaje regular: embalaje de madera
