pipe chamfering machine CLD50SA1

pipe chamfering machine

Model :CLD50SA
Certification Certificate :ISO9001
Country of Origin: China

SEND INQUIRY NOW

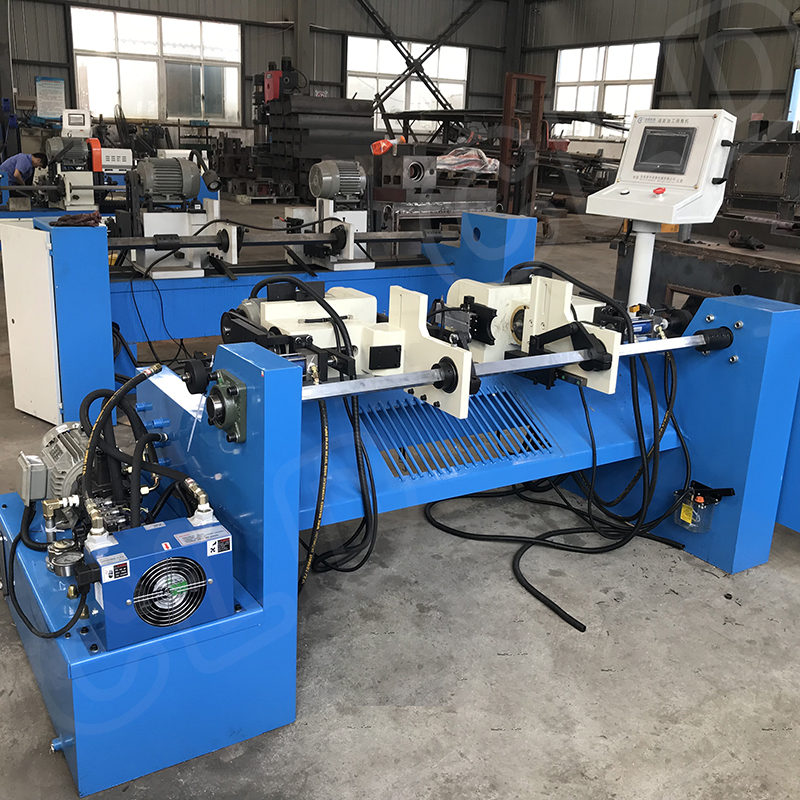

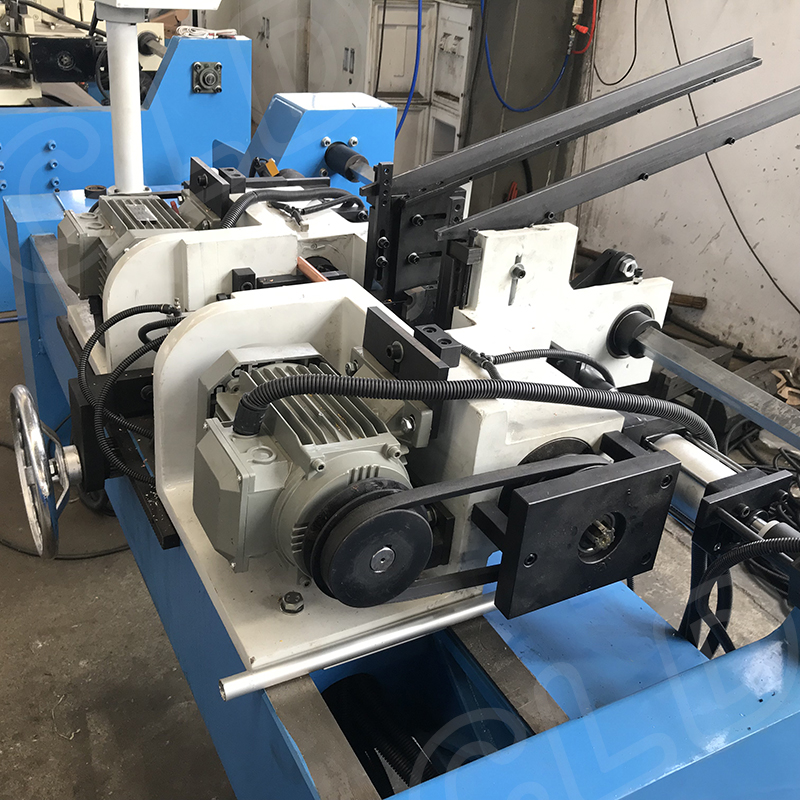

A double head pipe chamfering machine is a specialized piece of equipment used to chamfer the ends of pipes or tubes. Chamfering involves beveling or cutting away the edge or corner of a material to create a sloping edge, typically for purposes such as improving the fit of mating parts, facilitating welding, or enhancing safety. Here’s a description of its key features and functionalities:Dual Head Design: The double head pipe chamfering machine is equipped with two chamfering heads, allowing it to chamfer both ends of a pipe simultaneously or sequentially. This design enhances productivity and efficiency, especially for high-volume production.Automatic Operation: The machine is fully automated, meaning it can carry out the chamfering process from start to finish without the need for manual intervention. It is equipped with programmable controls and sensors to automate the feeding, clamping, chamfering, and unloading of pipes.Adjustable Chamfering Parameters: Operators can adjust various chamfering parameters such as chamfer angle, chamfer length, and feed rate to meet specific requirements or standards. This flexibility allows for the customization of chamfer profiles according to the application or material being processed.Versatility: Double head pipe chamfering machines can chamfer pipes or tubes made from various materials such as steel, stainless steel, aluminum, copper, and plastic. They are used in a wide range of industries, including manufacturing, construction, plumbing, automotive, and HVAC.Precision and Accuracy: With precise control over chamfering parameters and advanced cutting technology, these machines can achieve high levels of precision and accuracy in chamfering operations. They ensure that the chamfered ends of pipes have consistent dimensions and smooth surfaces.Quick Setup and Changeover: The machine is designed for quick setup and changeover between different pipe sizes or chamfering profiles. Operators can easily adjust settings and tooling to accommodate different pipe diameters and chamfer requirements.Safety Features: Double head pipe chamfering machines are equipped with safety features such as emergency stop buttons, safety guards, and interlocking systems to protect operators and prevent accidents during operation.Integrated Control System: It features an integrated control system with a user-friendly interface for programming chamfering parameters, monitoring chamfering processes, and diagnosing any issues that may arise during operation.Overall, double head pipe chamfering machines offer manufacturers a reliable and efficient solution for chamfering pipes or tubes with precision, speed, and consistency. They combine advanced technology with automation to streamline the chamfering process and improve productivity.
Brand: CLD

Name CLD50SA
Main Motor Power 3KW
Chamfering Capacity Pipe :¢8—¢50mm
Solid Bar:¢9—¢36mm
Standard Knife Plate One Set
Chamfering Speed one time 4S
Main Spindle Rotating Speed 1600 RPM
Hydraulic Motor Power 2.2KW
Air Pressure 0.6-0.8Mpa
Control Method Pneumatic
Machine Size 2550*1300*1400
Machine Weight 1250KGS

Minimum order quantity: 1piece
Price: 5000USD
payment method: 30% advance payment, 70% payment before shipment
Availability: 2piece/per day
Delivery time: (7 days to ship)
Regular packing: wooden packing
